# Grafana

In order to visualize lag metrics on a Grafana dashboard, do the following:

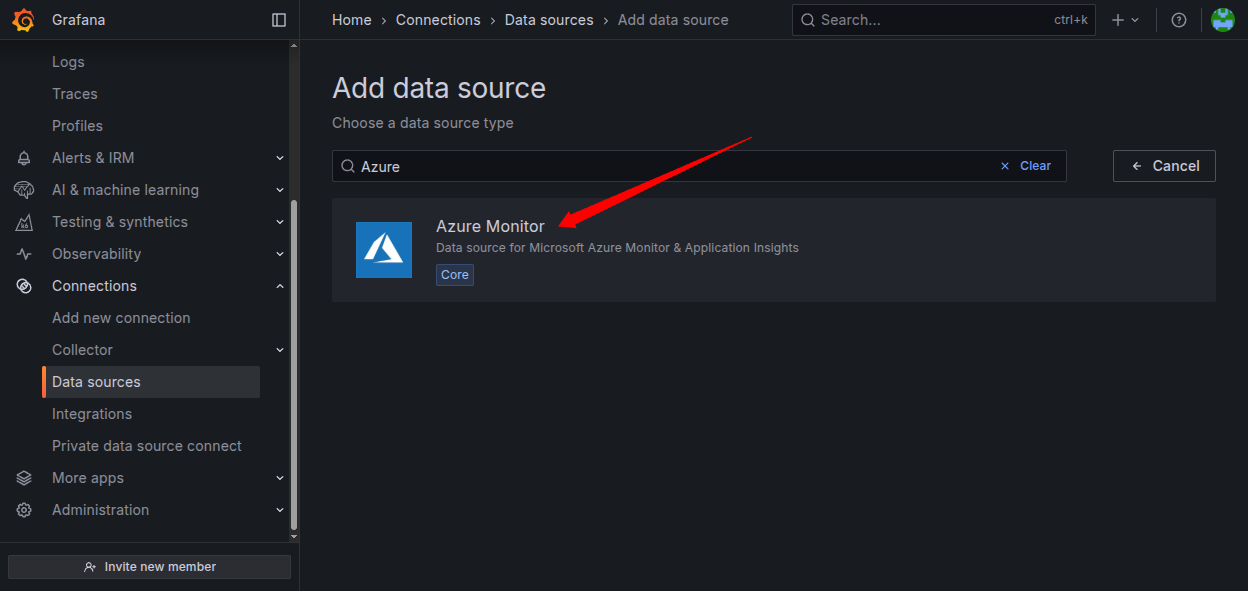

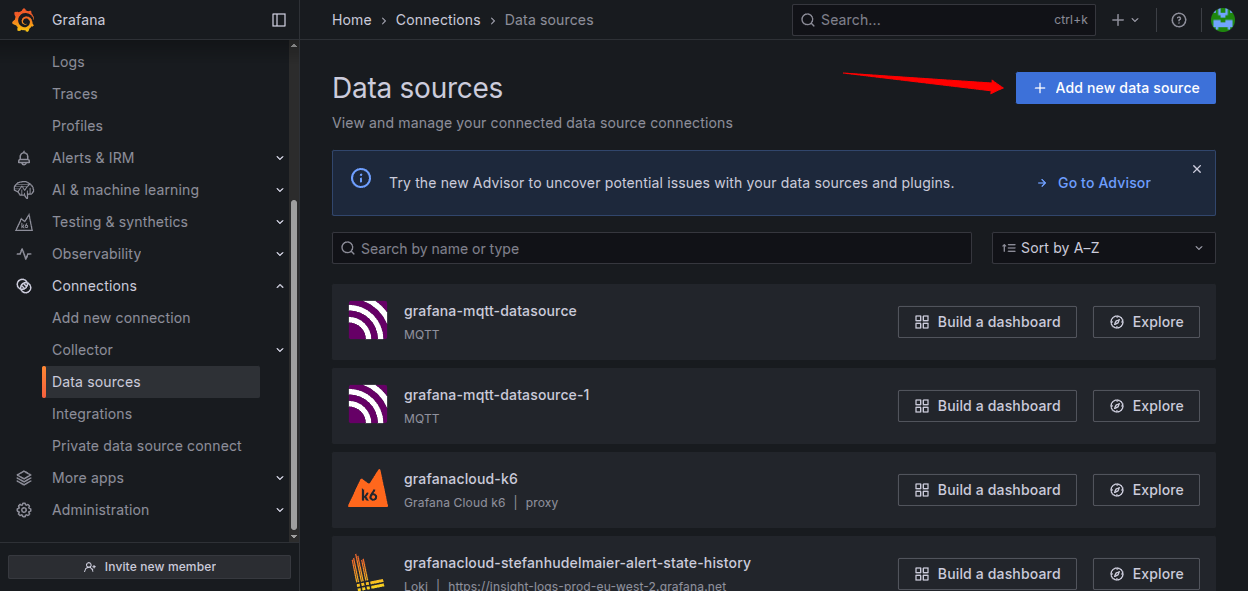

In your Grafana or Grafana cloud installation, add an Azure Monitor datasource (if you do not have one already):

Now, configure the datasource as described in the Grafana documentation.

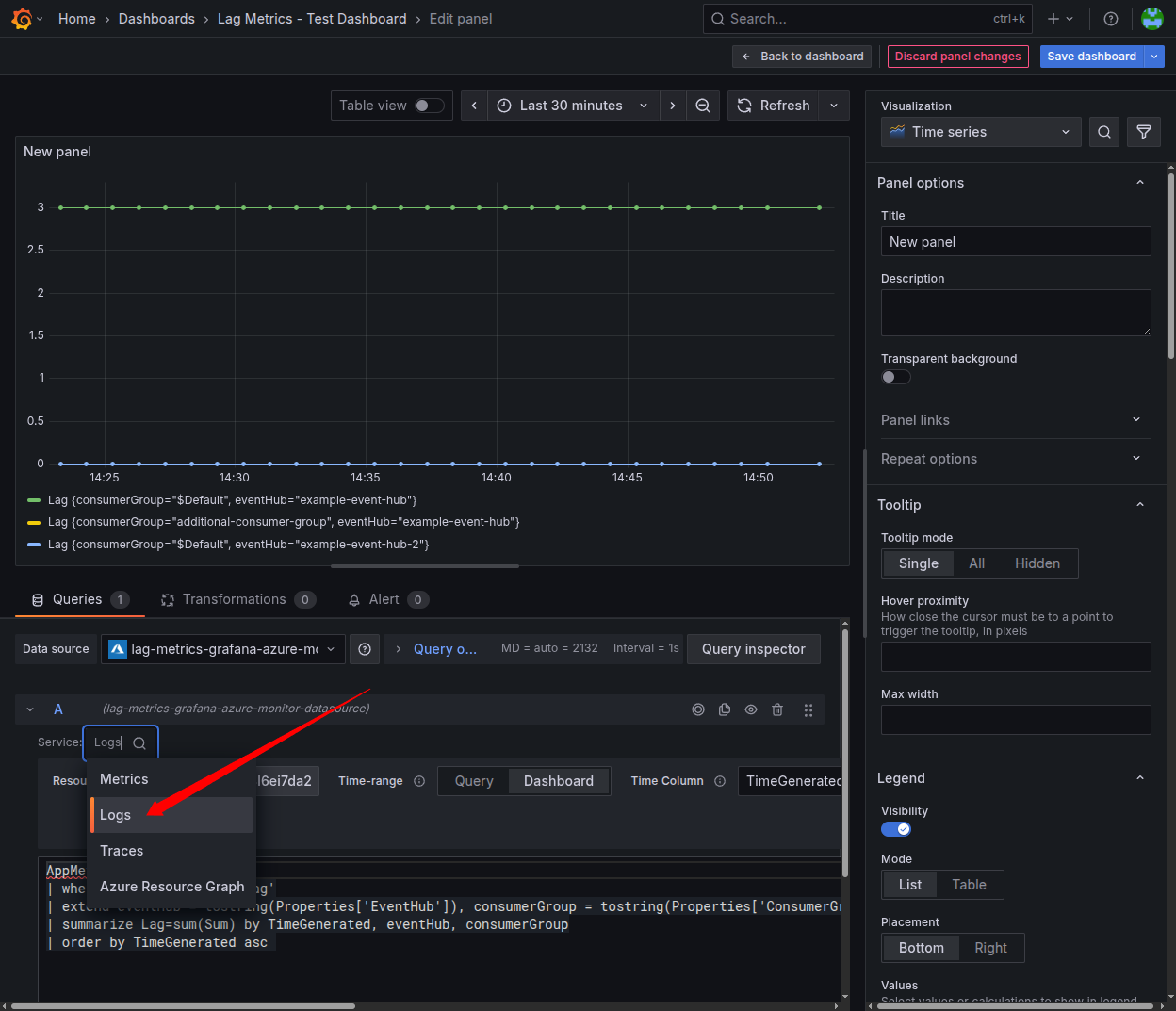

You can now create a dashboard. Select the newly added datasource. In Service choose Logs (this is named a little confusingly).

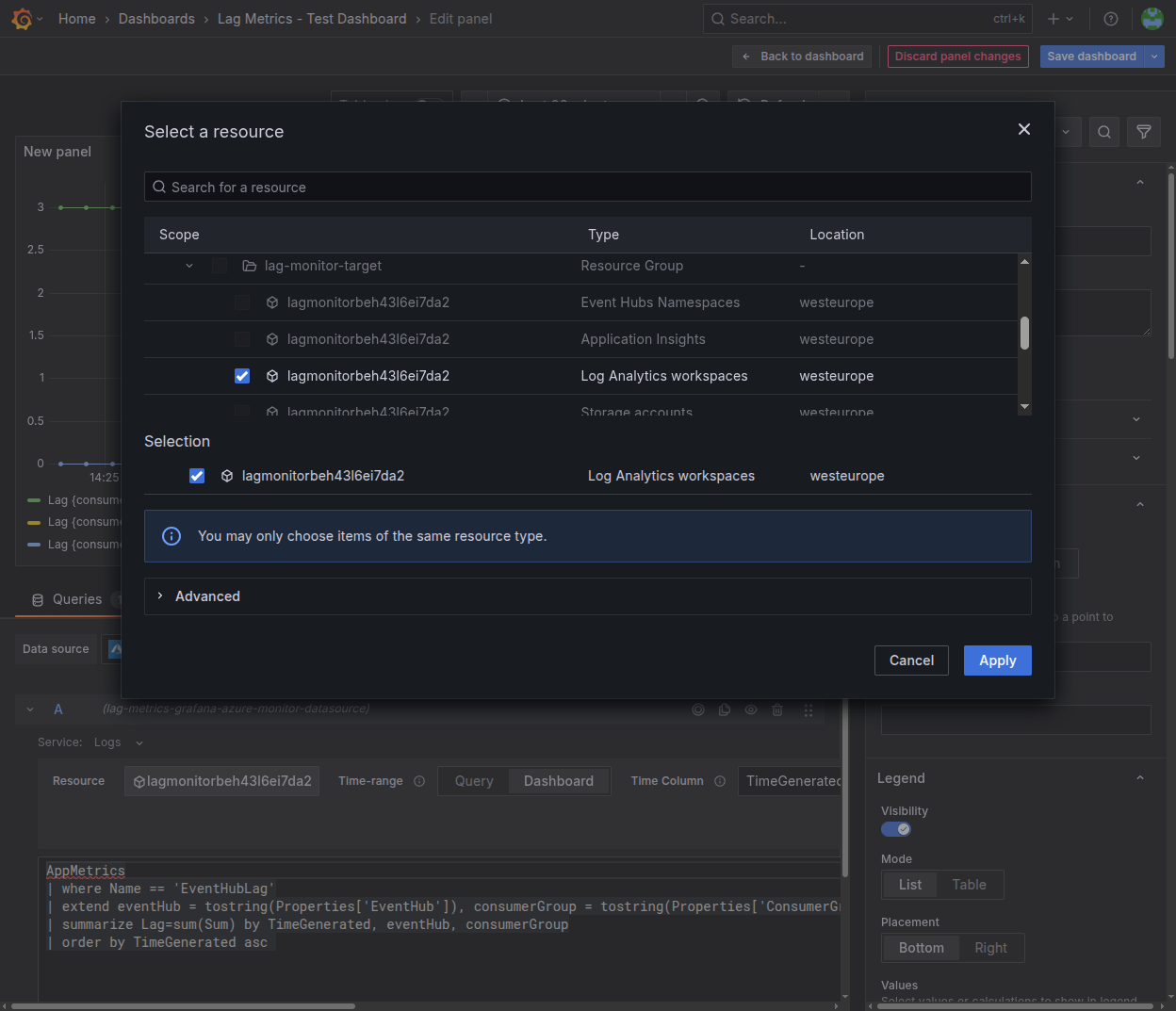

In Resources select your Log Analytics Workspace.

Enter the following KQL query:

AppMetrics
| where Name == 'EventHubLag'
| extend eventHub = tostring(Properties['EventHub']), consumerGroup = tostring(Properties['ConsumerGroup'])
| summarize Lag=sum(Sum) by TimeGenerated, eventHub, consumerGroup
| order by TimeGenerated asc

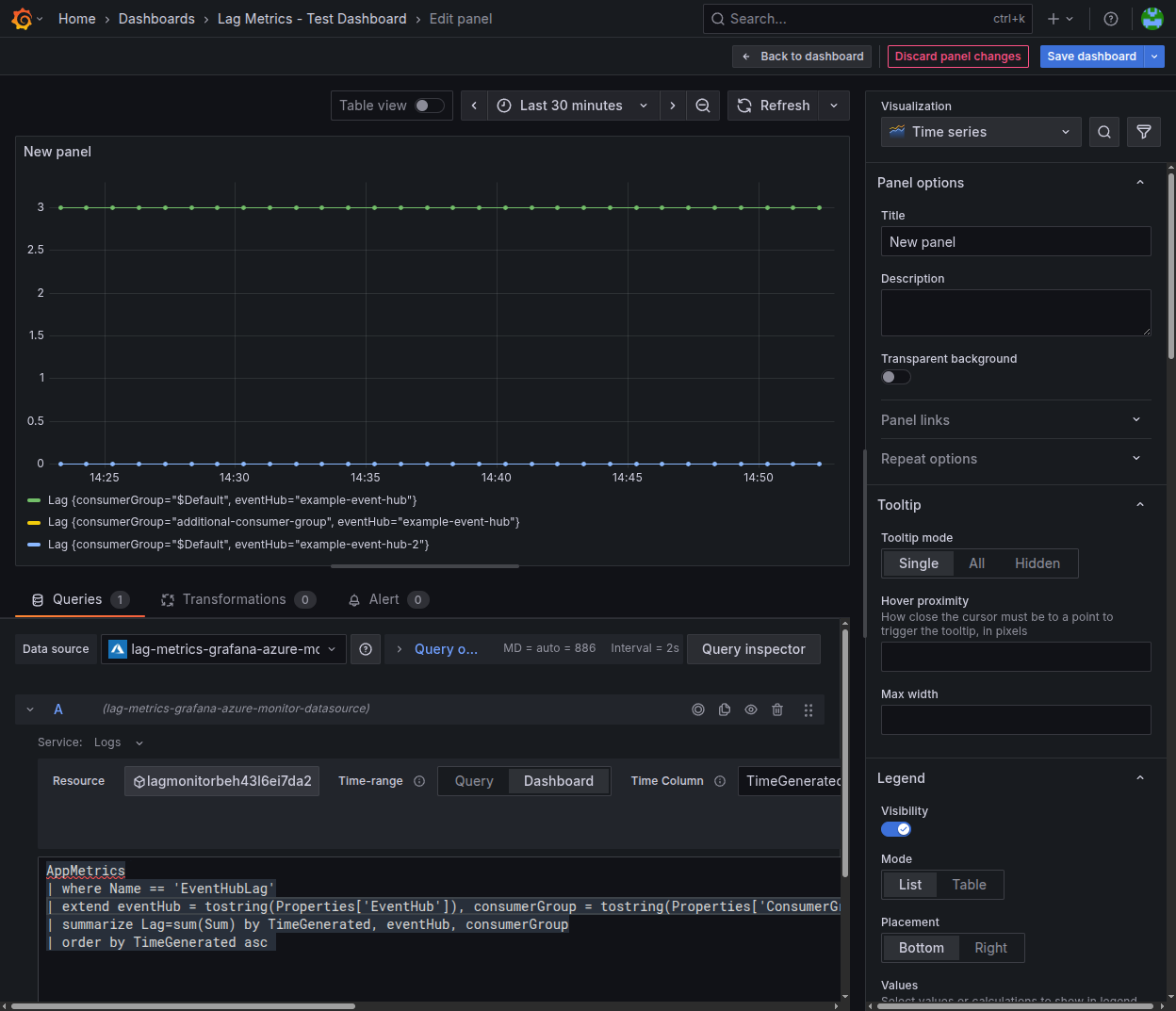

You should now see the lags of the different Event Hubs and consumer groups visualized:

Besides the time series visualization, a heat map can also be handy when analyzing the lag across partitions.

You can create one in the following manner: Create a panel with visualization Heatmap.

As above, select the Log Analytics Workspace and choose Logs as Service. Enter the following KQL query:

AppMetrics
| where Name == 'EventHubPartitionLag'
| extend eventHub = tostring(Properties['EventHub']), consumerGroup = tostring(Properties['ConsumerGroup']), partitionId=tostring(Properties['PartitionId'])
| where consumerGroup == '$Default' and eventHub == 'example-event-hub'
| summarize Lag=sum(Sum) by TimeGenerated, partitionId
| order by TimeGenerated asc

Set the Scheme to RdYlGn. Set the Start color scale from value to 0 and End color scale at value to e.g. 100 (or whatever lag for partition you consider problematic).

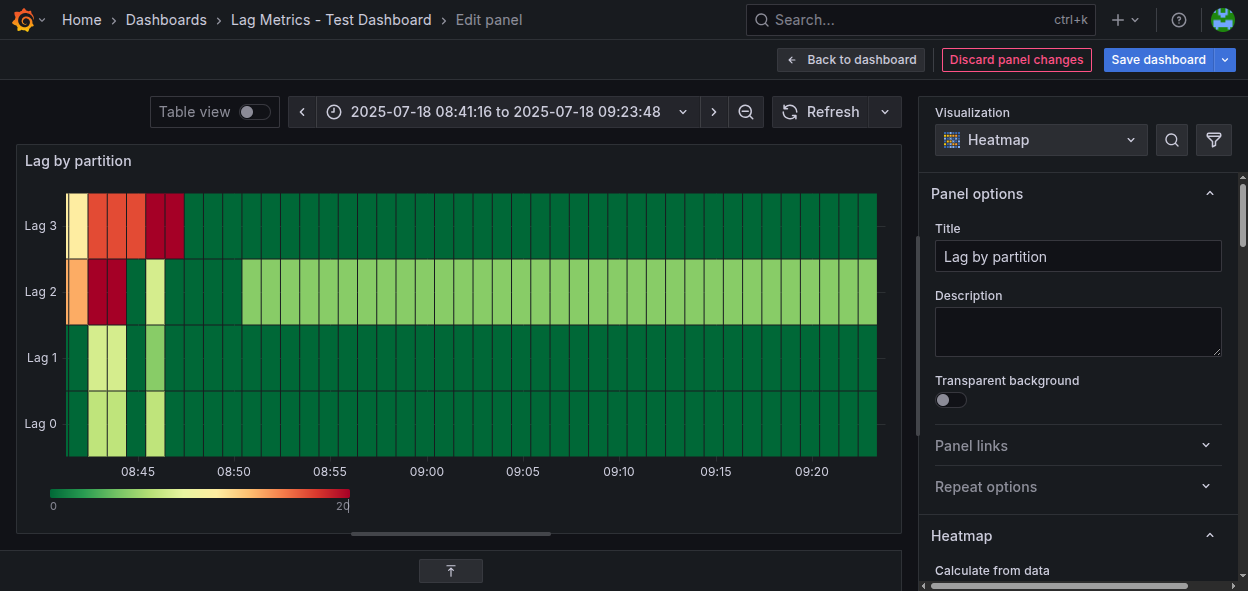

You should now see something like this:

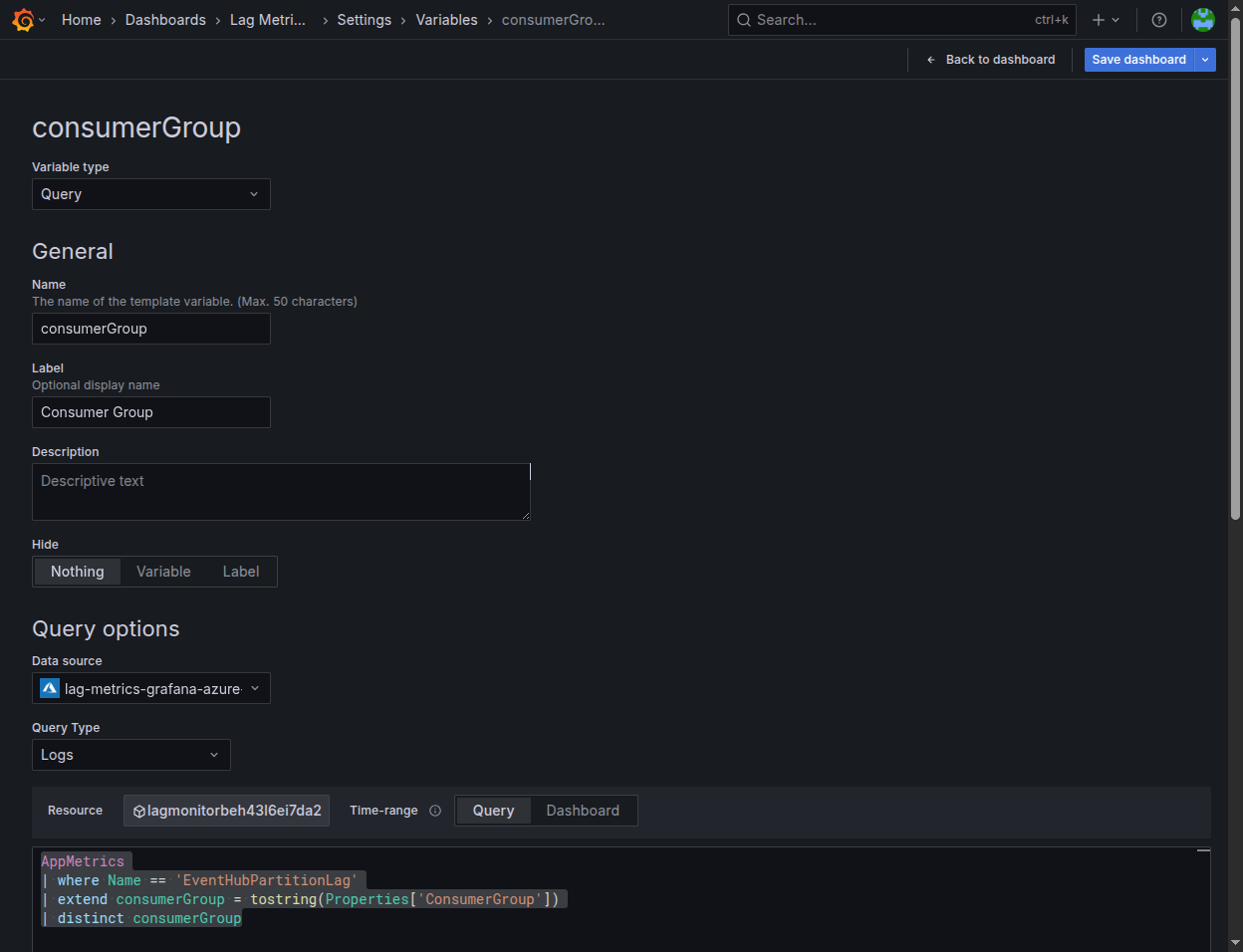

Now, let's define variables for the different consumer groups and Event Hubs. Go to Settings > Variables > Add Variable.

Select Query as the Variable type, select the correct data source. Set consumerGroup as the Name.

Use the following KQL query:

AppMetrics
| where Name == 'EventHubPartitionLag'
| extend consumerGroup = tostring(Properties['ConsumerGroup'])
| distinct consumerGroup

Do the same for a variable eventHub with the following KQL query:

AppMetrics
| where Name == 'EventHubPartitionLag'
| extend eventHub = tostring(Properties['EventHub'])
| distinct eventHub

You can now adapt the KQL query on the dashboard to use the variables:

AppMetrics
| where Name == 'EventHubPartitionLag'
| extend eventHub = tostring(Properties['EventHub']), consumerGroup = tostring(Properties['ConsumerGroup']), partitionId=tostring(Properties['PartitionId'])
| where consumerGroup == '$consumerGroup' and eventHub == '$eventHub'
| summarize Lag=sum(Sum) by TimeGenerated, partitionId
| order by TimeGenerated asc

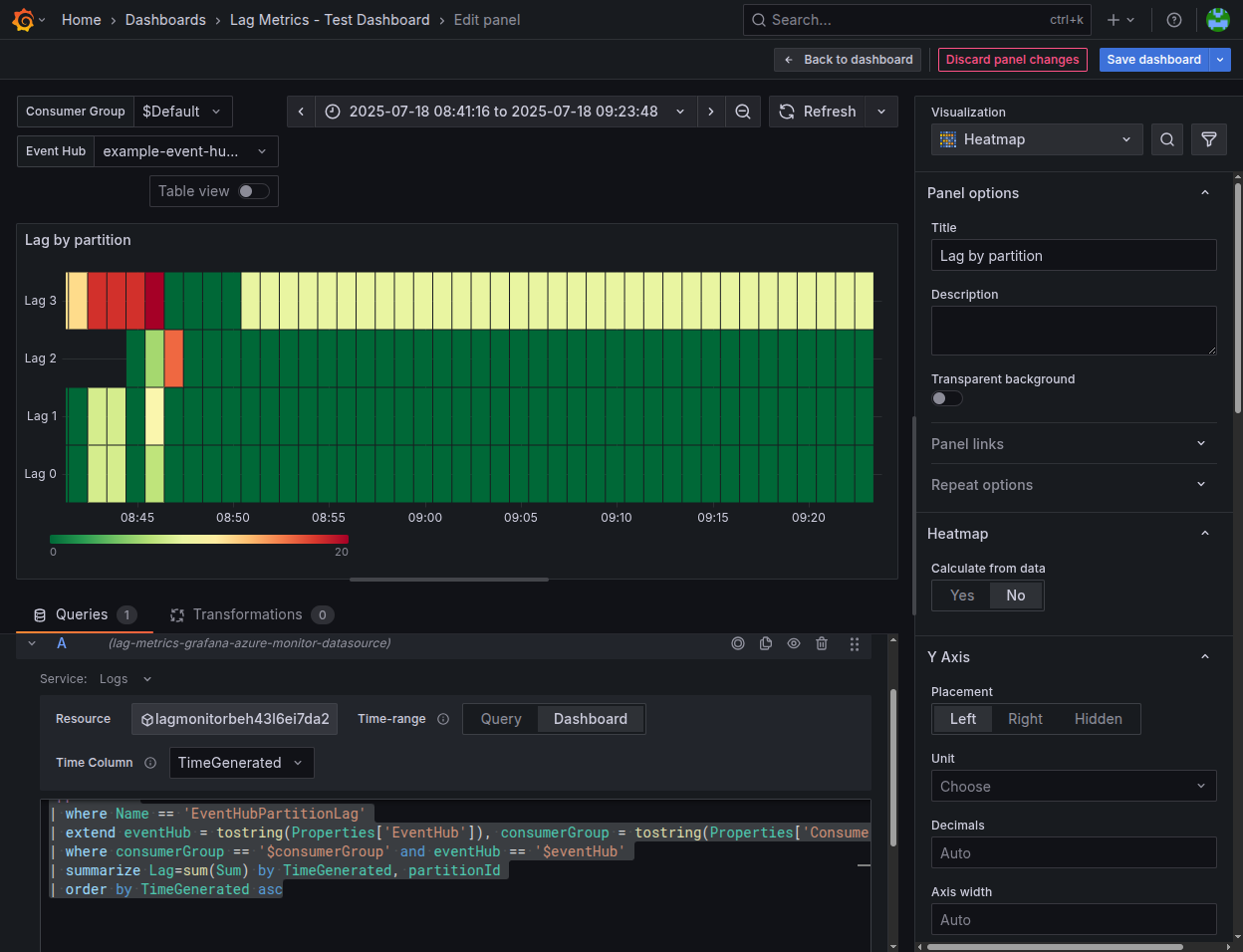

You now can select the Event Hubs and consumer groups.
